RG400 Double Shield Coaxial Cable 40 feet H126052
Sale price
$16.90
Regular price $72.74
Skip to product information
Low loss,Phase stability | Superior shielding performance | Max. Operating Frequency: 12400MHz

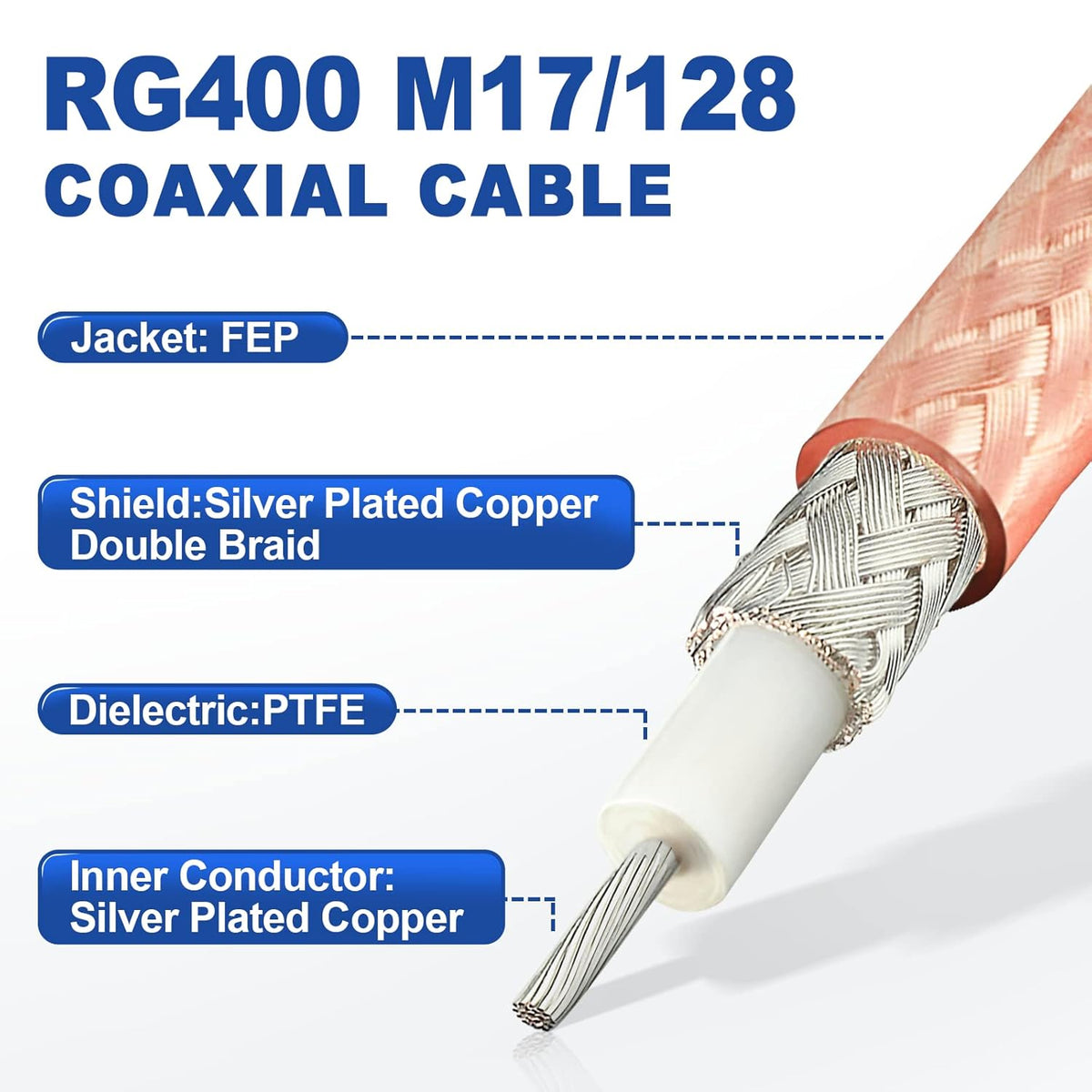

Material--Inner conductor: silver plated copper | Insulator: PTFE | Outer conductor(shielding) : silver plated copper double braid | Jacket (insulation sheath): FEP
Diameter-- Inner conductor: 19*0.203mm | Insulation:2.95mm | Outer conductor( shielding):3.95mm | Jacket (insulation sheath): 4.95mm
Impedance:50 ohm | Package includes: 1x 40 feet RG400 cable
Electronics Accessories & Supplies Audio & Video Accessories
RG400 Double Shield Coaxial Cable 40 feet H126052
Sale price
$16.90
Regular price $72.74
Shipping calculated at checkout.
Low loss,Phase stability | Superior shielding performance | Max. Operating Frequency: 12400MHz
Material--Inner conductor: silver plated copper | Insulator: PTFE | Outer conductor(shielding) : silver plated copper double braid | Jacket (insulation sheath): FEP
Diameter-- Inner conductor: 19*0.203mm | Insulation:2.95mm | Outer conductor( shielding):3.95mm | Jacket (insulation sheath): 4.95mm
Impedance:50 ohm | Package includes: 1x 40 feet RG400 cable
| RG400 | RG58 | RG316 | RG174 | RG402 | |
|---|---|---|---|---|---|
| Cable Diameter(mm) | 4.95 | 4.95 | 2.5 | 2.79 | 3.52 |
| Max.Oper Frequency(Ghz) | 12.4 | 3 | 3 | 1 | 34 |
| Attenuation (db/m)-1GHz | 0.482 | 0.502 | 0.856 | 0.899 | 0.39 |
